Spring Kafka - Spring Integration Example

Table of Contents

Spring Integration extends the Spring programming model to support the well-known Enterprise Integration Patterns. It enables lightweight messaging within Spring-based applications and supports integration with external systems via declarative adapters.

The Spring Integration Kafka extension project provides inbound and outbound channel adapters specifically for Apache Kafka.

In this tutorial, we will configure, build and run a Hello World example in which we will send/receive messages to/from Apache Kafka using Spring Integration Kafka, Spring Boot, and Maven.

If you want to learn more about Spring Kafka - head on over to the Spring Kafka tutorials page.

General Project Setup #

Tools used:

Spring Kafka 1.2
Spring Integration 2.1
Spring Boot 1.5
Maven 3.5

The building of this project will be automated using Maven. We include the needed Spring Integration dependencies using the spring-boot-starter-integration Spring Boot starter. For testing support, we also include the spring-boot-starter-test starter.

As we will be using the Spring Integration Kafka extension, we add the corresponding spring-integration-kafka dependency. Starting from version 2.0 this project is a complete rewrite based on the Spring for Apache Kafka project which uses the pure java Producer and Consumer clients provided by Kafka. As such we also add the spring-kafka dependency for core functionality as well as spring-kafka-test in order to have access to an embedded Kafka broker when running our unit test.

The spring-boot-maven-plugin Maven plugin is added so that we can build a single, runnable JAR, which is convenient to execute and transport our written code.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.codenotfound</groupId>
  <artifactId>spring-kafka-integration-helloworld</artifactId>
  <version>0.0.1-SNAPSHOT</version>

  <name>spring-kafka-integration-helloworld</name>
  <description>Spring Kafka - Integration Example</description>
  <url>https://www.codenotfound.com/spring-kafka-spring-integration-example.html</url>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.4.RELEASE</version>
  </parent>

  <properties>
    <java.version>1.8</java.version>

    <spring-integration-kafka.version>2.1.0.RELEASE</spring-integration-kafka.version>
    <spring-kafka.version>1.2.2.RELEASE</spring-kafka.version>
  </properties>

  <dependencies>
    <!-- spring-boot -->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-integration</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>
    <!-- spring-integration -->
    <dependency>
      <groupId>org.springframework.integration</groupId>
      <artifactId>spring-integration-kafka</artifactId>
      <version>${spring-integration-kafka.version}</version>
    </dependency>
    <!-- spring-kafka -->
    <dependency>
      <groupId>org.springframework.kafka</groupId>
      <artifactId>spring-kafka</artifactId>
      <version>${spring-kafka.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework.kafka</groupId>
      <artifactId>spring-kafka-test</artifactId>
      <version>${spring-kafka.version}</version>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <!-- spring-boot-maven-plugin -->
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>
</project>

We create a SpringKafkaIntegrationApplication class that takes care of some basic Spring Boot setup and which also allows launching the application.

package com.codenotfound.kafka.integration;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringKafkaIntegrationApplication {

  public static void main(String[] args) {
    SpringApplication.run(SpringKafkaIntegrationApplication.class, args);
  }
}

Example Setup Overview #

Spring Integration uses the concept of a Message Channel to pass along information from one component to another. It represents the “pipe” of a pipes-and-filters architecture. A Message Channel may follow either Point-to-Point or Publish/Subscribe semantics.

A Message Endpoint represents the “filter” of a pipes-and-filters architecture. Spring Integration has a number of endpoint types that are supported. In this example, we will look at the endpoint types that allow us to connect to Kafka.

The first one is a Service Activator which simply connects any existing Spring-managed bean to a channel. Spring Integration Kafka provides a KafkaProducerMessageHandler which handles a given message by using a KafkaTemplate to send data to Kafka topics. By connecting a channel as input to this Message Handler we can send messages to the Kafka bus.

The second one is a Channel Adapter endpoint that connects a Message Channel to some other system or transport. Channel Adapters may be either inbound (towards a channel) or outbound (from a channel). Spring Integration Kafka ships with an inbound KafkaMessageDrivenChannelAdapter which uses a spring-kafka KafkaMessageListenerContainer or ConcurrentListenerContainer to receive messages from Kafka topics.

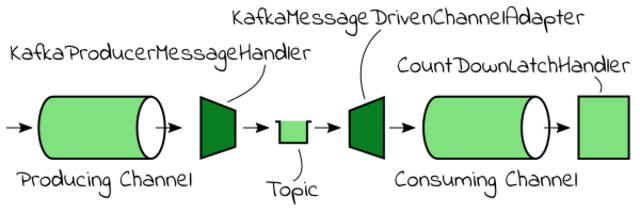

Our example will consist out of two channels as shown in above diagram. The first ProducingChannel will have a kafkaMessageHandler that subscribes to the channel and writes all received messages to a spring-integration-kafka.t topic.

A second ConsumingChannel will connect to the same topic using a KafkaMessageDrivenChannelAdapter. A custom CountDownLatchHandler subscribes to this second channel and lowers a CountDownLatch in addition to logging the received message.

Spring Integration Kafka Producer Channel #

We start by defining the ProducingChannel as a DirectChannel bean. This is the default channel provided by the framework, but you can use any of the message channels Spring Integration provides.

Next, we create the KafkaProducerMessageHandler that will send messages received from the ProducingChannel towards a topic. The name of this topic is defined on the handler using the setTopicExpression() setter or it is obtained from the TOPIC message header. We will use the latter in this example as you will see in the unit test case further below.

To illustrate that static values can also be set directly on the adapter, we assign a fix 'kafka-integration' kafka_messageKey header by using setMessageKeyExpression().

The KafkaProducerMessageHandler constructor requires a KafkaTemplate to be passed as a parameter. We create the template using a ProducerFactory and corresponding configuration. For more detailed information you can check the Spring Kafka Producer tutorial section.

The KafkaProducerMessageHandler is attached to the ProducingChannel using the @ServiceActivator annotation. As inputChannel we need to specify the ProducingChannel as a key/value pair in order to make the link.

package com.codenotfound.kafka.integration.channel;

import java.util.HashMap;
import java.util.Map;

import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.common.serialization.StringSerializer;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.expression.common.LiteralExpression;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.channel.DirectChannel;
import org.springframework.integration.kafka.outbound.KafkaProducerMessageHandler;
import org.springframework.kafka.core.DefaultKafkaProducerFactory;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.kafka.core.ProducerFactory;
import org.springframework.messaging.MessageHandler;

@Configuration
public class ProducingChannelConfig {

  @Value("${kafka.bootstrap-servers}")
  private String bootstrapServers;

  @Bean
  public DirectChannel producingChannel() {
    return new DirectChannel();
  }

  @Bean
  @ServiceActivator(inputChannel = "producingChannel")
  public MessageHandler kafkaMessageHandler() {
    KafkaProducerMessageHandler<String, String> handler =
        new KafkaProducerMessageHandler<>(kafkaTemplate());
    handler.setMessageKeyExpression(new LiteralExpression("kafka-integration"));

    return handler;
  }

  @Bean
  public KafkaTemplate<String, String> kafkaTemplate() {
    return new KafkaTemplate<>(producerFactory());
  }

  @Bean
  public ProducerFactory<String, String> producerFactory() {
    return new DefaultKafkaProducerFactory<>(producerConfigs());
  }

  @Bean
  public Map<String, Object> producerConfigs() {
    Map<String, Object> properties = new HashMap<>();
    properties.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
    properties.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
    properties.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
    // introduce a delay on the send to allow more messages to accumulate
    properties.put(ProducerConfig.LINGER_MS_CONFIG, 1);

    return properties;
  }
}

Spring Integration Kafka Consumer Channel #

Similar to the ProducingChannel, a ConsumingChannel bean is specified, again using the DirectChannel channel type.

We create a KafkaMessageDrivenChannelAdapter that can receive messages from one or more Kafka topics. The constructor takes a MessageListenerContainer as an input parameter. We then connect this Channel Adapter to the ConsumingChannel by using the setOutputChannel() method.

In order to test our setup, a CountDownLatchHandler bean is defined that is linked to the ConsumingChannel using the @ServiceActivator annotation.

In this example we setup the MessageListenerContainer using the KafkaMessageListenerContainer implementation. This is very similar to what we did in the Spring Kakfa Consumer tutorial section. As such we won’t go into further details.

One small difference to note is the fact that we set the AUTO_OFFSET_RESET_CONFIG to earliest. This is done to avoid that the listener “misses” messages that have been sent before it was fully initialized.

package com.codenotfound.kafka.integration.channel;

import java.util.HashMap;
import java.util.Map;

import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.channel.DirectChannel;
import org.springframework.integration.kafka.inbound.KafkaMessageDrivenChannelAdapter;
import org.springframework.kafka.core.ConsumerFactory;
import org.springframework.kafka.core.DefaultKafkaConsumerFactory;
import org.springframework.kafka.listener.ConcurrentMessageListenerContainer;
import org.springframework.kafka.listener.config.ContainerProperties;

@Configuration
public class ConsumingChannelConfig {

  @Value("${kafka.bootstrap-servers}")
  private String bootstrapServers;

  @Value("${kafka.topic.spring-integration-kafka}")
  private String springIntegrationKafkaTopic;

  @Bean
  public DirectChannel consumingChannel() {
    return new DirectChannel();
  }

  @Bean
  public KafkaMessageDrivenChannelAdapter<String, String> kafkaMessageDrivenChannelAdapter() {
    KafkaMessageDrivenChannelAdapter<String, String> kafkaMessageDrivenChannelAdapter =
        new KafkaMessageDrivenChannelAdapter<>(kafkaListenerContainer());
    kafkaMessageDrivenChannelAdapter.setOutputChannel(consumingChannel());

    return kafkaMessageDrivenChannelAdapter;
  }

  @Bean
  @ServiceActivator(inputChannel = "consumingChannel")
  public CountDownLatchHandler countDownLatchHandler() {
    return new CountDownLatchHandler();
  }

  @SuppressWarnings("unchecked")
  @Bean
  public ConcurrentMessageListenerContainer<String, String> kafkaListenerContainer() {
    ContainerProperties containerProps = new ContainerProperties(springIntegrationKafkaTopic);

    return (ConcurrentMessageListenerContainer<String, String>) new ConcurrentMessageListenerContainer<>(
        consumerFactory(), containerProps);
  }

  @Bean
  public ConsumerFactory<?, ?> consumerFactory() {
    return new DefaultKafkaConsumerFactory<>(consumerConfigs());
  }

  @Bean
  public Map<String, Object> consumerConfigs() {
    Map<String, Object> properties = new HashMap<>();
    properties.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
    properties.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
    properties.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
    properties.put(ConsumerConfig.GROUP_ID_CONFIG, "spring-integration");
    // automatically reset the offset to the earliest offset
    properties.put(ConsumerConfig.AUTO_OFFSET_RESET_CONFIG, "earliest");

    return properties;
  }
}

In order to be able to verify the correct working of our two connected channels, we will create a basic CountDownLatchHandler class that implements the MessageHandler interface. Messages from the attached ConsumingChannel are logged and a CountDownLatch is lowered per message.

package com.codenotfound.kafka.integration.channel;

import java.util.concurrent.CountDownLatch;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHandler;
import org.springframework.messaging.MessagingException;

public class CountDownLatchHandler implements MessageHandler {

  private static final Logger LOGGER = LoggerFactory.getLogger(CountDownLatchHandler.class);

  private CountDownLatch latch = new CountDownLatch(10);

  public CountDownLatch getLatch() {
    return latch;
  }

  @Override
  public void handleMessage(Message<?> message) throws MessagingException {
    LOGGER.info("received message='{}'", message);
    latch.countDown();
  }
}

Spring Integration Kafka Test #

Let’s test the example using below SpringKafkaIntegrationApplicationTest unit test case. We setup an embedded Kafka broker using the JUnit @ClassRule annotation as we have seen in a previous Spring Kafka test example.

In order to get hold of our ProducingChannel, we auto-wire the ApplicationContext and use the getBean() method. We then create a for loop in which we sent 10 messages to the 'spring-integration-kafka.t' topic using the channel’s send() method. Note that we set the topic by adding a message header Map which contains the KafkaHeaders.TOPIC value which corresponds to the destination topic name.

The sent messages should be picked up by the ConsumingChannel bean and when passed to the CountDownLatchHandler the CountDownLatch will be lowered from its initial value 10. We then check if the 10 messages have been receive by asserting that the CountDownLatch value is equals to 0.

package com.codenotfound.kafka.integration;

import static org.assertj.core.api.Assertions.assertThat;

import java.util.Collections;
import java.util.Map;
import java.util.concurrent.TimeUnit;

import org.junit.ClassRule;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.context.ApplicationContext;
import org.springframework.kafka.support.KafkaHeaders;
import org.springframework.kafka.test.rule.KafkaEmbedded;
import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.support.GenericMessage;
import org.springframework.test.context.junit4.SpringRunner;

import com.codenotfound.kafka.integration.channel.CountDownLatchHandler;

@RunWith(SpringRunner.class)
@SpringBootTest
public class SpringKafkaIntegrationApplicationTest {

  private static final Logger LOGGER =
      LoggerFactory.getLogger(SpringKafkaIntegrationApplicationTest.class);

  @Autowired
  private ApplicationContext applicationContext;

  @Autowired
  private CountDownLatchHandler countDownLatchHandler;

  private static String SPRING_INTEGRATION_KAFKA_TOPIC = "spring-integration-kafka.t";

  @ClassRule
  public static KafkaEmbedded embeddedKafka =
      new KafkaEmbedded(1, true, SPRING_INTEGRATION_KAFKA_TOPIC);

  @Test
  public void testIntegration() throws Exception {
    MessageChannel producingChannel =
        applicationContext.getBean("producingChannel", MessageChannel.class);

    Map<String, Object> headers =
        Collections.singletonMap(KafkaHeaders.TOPIC, SPRING_INTEGRATION_KAFKA_TOPIC);

    LOGGER.info("sending 10 messages");
    for (int i = 0; i < 10; i++) {
      GenericMessage<String> message =
          new GenericMessage<>("Hello Spring Integration Kafka " + i + "!", headers);
      producingChannel.send(message);
      LOGGER.info("sent message='{}'", message);
    }

    countDownLatchHandler.getLatch().await(10000, TimeUnit.MILLISECONDS);
    assertThat(countDownLatchHandler.getLatch().getCount()).isEqualTo(0);
  }
}

Run the test case by opening a command prompt and issue following Maven command:

mvn test

Maven will do the needed and the outcome of the test should show 10 messages being sent and received with a successful build as a result.

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v1.5.4.RELEASE)

08:15:06.232 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - Starting SpringKafkaIntegrationApplicationTest on cnf-pc with PID 4872 (started by CodeNotFound in c:\codenotfound\spring-kafka\spring-kafka-integration-helloworld)
08:15:06.233 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - No active profile set, falling back to default profiles: default
08:15:07.454 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - Started SpringKafkaIntegrationApplicationTest in 1.505 seconds (JVM running for 5.936)
08:15:07.639 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sending 10 messages
08:15:07.683 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 0!, headers={kafka_topic=spring-integration-kafka.t, id=16be84e9-cf8d-dcab-c1b4-0c48d65b53ff, timestamp=1494656107640}]'
08:15:07.691 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 1!, headers={kafka_topic=spring-integration-kafka.t, id=f7412b5f-20b9-3668-d5fa-d395a633ba31, timestamp=1494656107685}]'
08:15:07.691 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 2!, headers={kafka_topic=spring-integration-kafka.t, id=9e0f6210-f9ec-47db-2257-189f240f8c2f, timestamp=1494656107691}]'
08:15:07.691 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 3!, headers={kafka_topic=spring-integration-kafka.t, id=820874b4-6f73-e4e0-6f71-18c10fb2bb7f, timestamp=1494656107691}]'
08:15:07.692 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 4!, headers={kafka_topic=spring-integration-kafka.t, id=5447b799-0d7d-6b81-159c-01bfeae56ccf, timestamp=1494656107691}]'
08:15:07.692 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 5!, headers={kafka_topic=spring-integration-kafka.t, id=4093e7fb-c44c-8934-e5c2-09bf1009d0f4, timestamp=1494656107692}]'
08:15:07.692 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 6!, headers={kafka_topic=spring-integration-kafka.t, id=73439ebc-20af-5b58-49e4-fec30cfb3e7d, timestamp=1494656107692}]'
08:15:07.692 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 7!, headers={kafka_topic=spring-integration-kafka.t, id=dd566697-bd30-0a4c-a878-f28b27fa4b83, timestamp=1494656107692}]'
08:15:07.692 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 8!, headers={kafka_topic=spring-integration-kafka.t, id=37c4933d-f8c7-06f8-0f6c-29364146684b, timestamp=1494656107692}]'
08:15:07.692 [main] INFO  c.c.k.i.SpringKafkaIntegrationApplicationTest - sent message='GenericMessage [payload=Hello Spring Integration Kafka 9!, headers={kafka_topic=spring-integration-kafka.t, id=4746f1b2-e8e5-42b0-0d8e-df79e49cd109, timestamp=1494656107692}]'
08:15:08.796 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 0!, headers={kafka_offset=0, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.797 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 1!, headers={kafka_offset=1, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.797 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 2!, headers={kafka_offset=2, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.797 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 3!, headers={kafka_offset=3, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.797 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 4!, headers={kafka_offset=4, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.797 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 5!, headers={kafka_offset=5, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.797 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 6!, headers={kafka_offset=6, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.797 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 7!, headers={kafka_offset=7, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.798 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 8!, headers={kafka_offset=8, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:08.798 [kafkaListenerContainer-0-C-1] INFO  c.c.k.i.c.CountDownLatchHandler - received message='GenericMessage [payload=Hello Spring Integration Kafka 9!, headers={kafka_offset=9, kafka_receivedMessageKey=kafka-integration, kafka_receivedPartitionId=0, kafka_receivedTopic=spring-integration-kafka.t}]'
08:15:10.345 [main] ERROR o.a.zookeeper.server.ZooKeeperServer - ZKShutdownHandler is not registered, so ZooKeeper server won't take any action on ERROR or SHUTDOWN server state changes
Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 9.164 sec - in com.codenotfound.kafka.integration.SpringKafkaIntegrationApplicationTest

Results :

Tests run: 1, Failures: 0, Errors: 0, Skipped: 0

[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 11.747 s
[INFO] Finished at: 2017-05-13T08:15:11+02:00
[INFO] Final Memory: 17M/227M
[INFO] ------------------------------------------------------------------------

If you would like to run the above code sample you can get the full source code on GitHub.

This concludes the Spring Kafka Integration example in which we demonstrated how you can consume “from” and produce “to” a Kafka topic.

Leave a comment if you have some questions or if you just enjoyed this post. Thanks!
