Maven is a build automation tool used primarily for Java projects. Maven addresses two aspects of building software:

  1. It describes how software is built.
  2. It describes its dependencies.

The following tutorial shows how to download, install and configure Apache Maven 3.5.3 on Windows.

Maven Prerequisites

As Maven needs Java in order to work, make sure that a Java runtime environment (JRE) is installed and configured on your system.

Maven 3.3+ requires JDK 1.7 or above to execute.

In order to check if Java is available on your system, open a command prompt and execute the following statement.

java -version

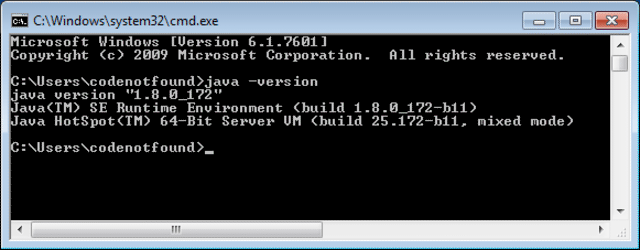

If a Java Runtime Environment (JRE) is correctly installed and configured the version will be printed as shown below.

installed java version

Maven Download & Install

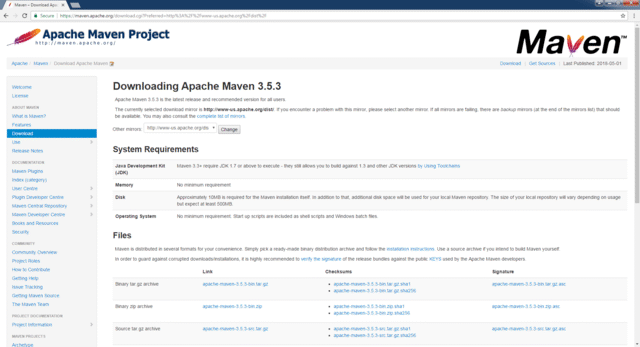

Head over to the Maven download page and locate Files section. Download the binary ZIP file, at the time of writing it was apache-maven-3.5.3-bin.zip.

Here is the direct link to download the apache-maven-3.5.3 binary ZIP file for Windows 32 or 64 bit.

maven 3.5 download page

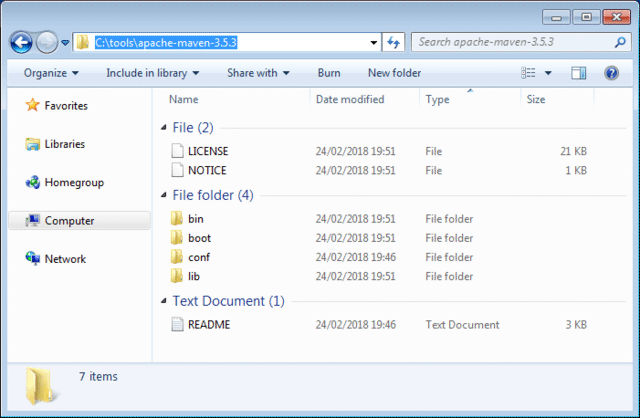

Extract the binary archive downloaded in the previous step. The extracted root directory should contain a number of files and subdirectories as shown below.

In this example the install location is 'C:\tools\apache-maven-3.5.3'. From now on we will refer to this directory as: [maven_install_dir].

maven 3.5 install location

Maven Configuration

Next we need to setup a 'M2_HOME' environment variable that will point to the installed Maven runtime. In addition, if we want to run Maven from a command prompt, we need to configure the 'PATH' environment variable to contain the Maven bin directory.

When using Windows the above parameters can be configured on the Environment Variables panel. Click on the Windows Start button and enter “env” without quotes as shown below.

edit environment variables

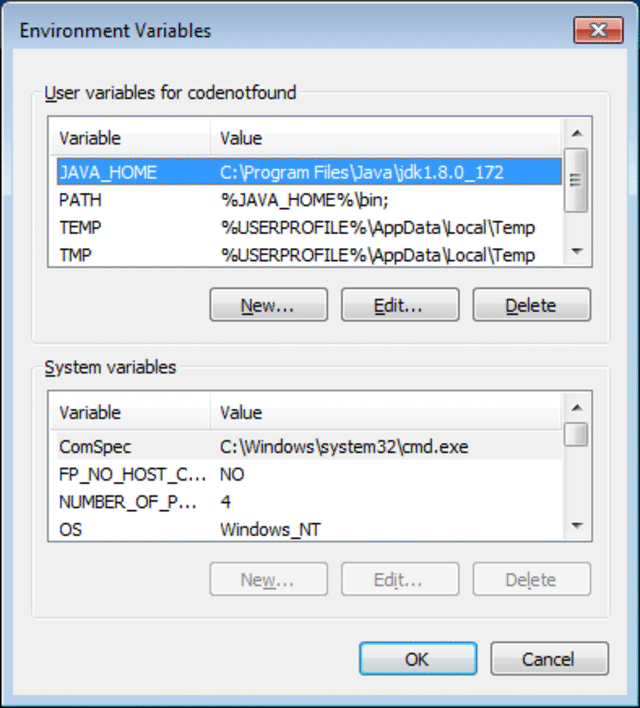

Environment variables can be set at account level or at system level. For this example click on Edit environment variables for your account and following panel should appear.

environment variables

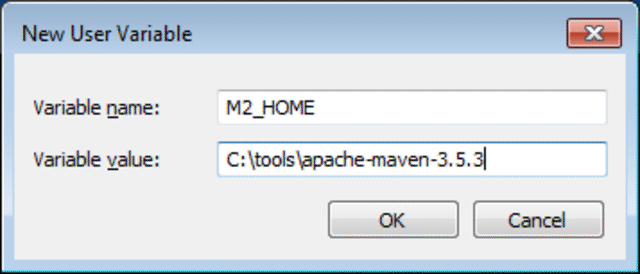

Click on the New button and enter “M2_HOME” as variable name and the “[maven_install_dir]” as variable value. In this tutorial the installation directory is 'C:\tools\apache-maven-3.5.3'. Click OK to to save.

Note that “M2_HOME” is used for Maven 2 and later. “MAVEN_HOME” is for Maven 1.

maven 3.5 set home

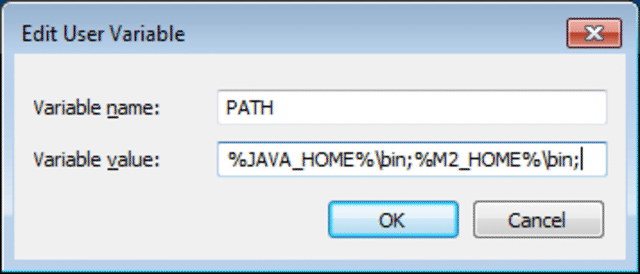

Select the 'PATH' entry and click on the Edit button. Add “;%M2_HOME%\bin;” at the end of the variable value and click OK to save.

Note that in case a 'PATH' variable does not exist you can create it and use “%M2_HOME%\bin;” as the variable value.

maven set path

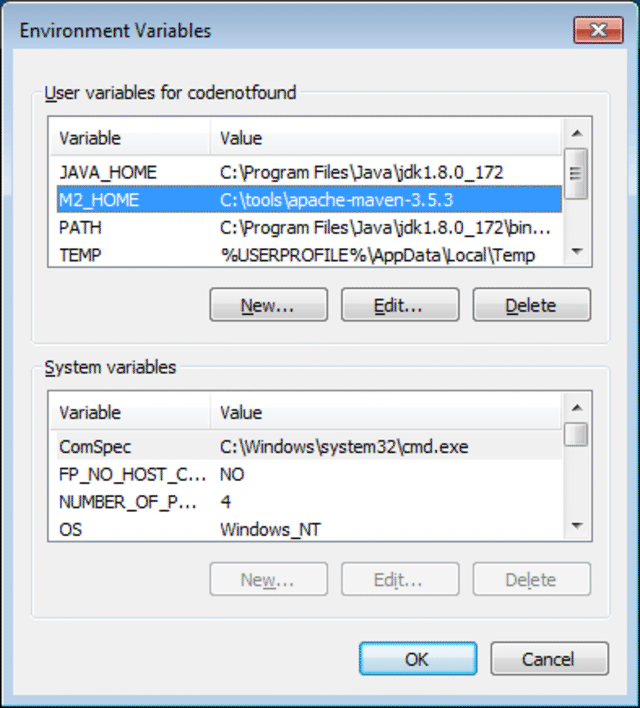

The result should be as shown below. Click OK to close the Environment Variables panel.

maven 3.5 environment variables

In order to test the above configuration, open a command prompt by clicking on the Windows Start button and typing “cmd” followed by pressing ENTER. A new command prompt should open in which the following command can be entered to verify the installed Maven version:

mvn -version

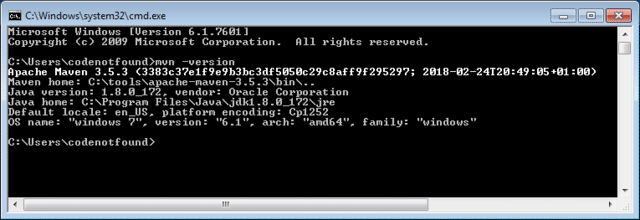

The result should be that the Maven version is printed as shown below.

maven 3.5 version

Maven Usage

Let’s finish the tutorial by creating a basic Maven HelloWorld project.

Open a command prompt and navigate to the directory in which you want to create the project. In the example below we will use C:\Users\codenotfound.

Next enter following Maven command and press ENTER.

mvn archetype:generate -DgroupId=com.codenotfound -DartifactId=hello-world -DarchetypeArtifactId=maven-archetype-quickstart -DinteractiveMode=false

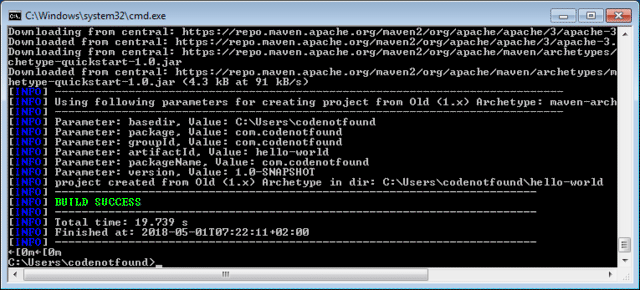

Maven will start looking for the needed dependencies in order to create the project which is based on the 'maven-archetype-quickstart' archetype (= a Maven project templating toolkit). If needed, dependencies are downloaded to the local repository. Once all dependencies are resolved, the project is created and a 'BUILD SUCCESS' statement is shown.

Feel free to browse the created hello-world directory. At the root you should be able to find the pom.xml, which is the XML representation of the Maven project.

maven 3.5 create new project

This concludes the setting up and configuring Maven 3.5.

If you found this post helpful or have any questions or remarks, please leave a comment.
